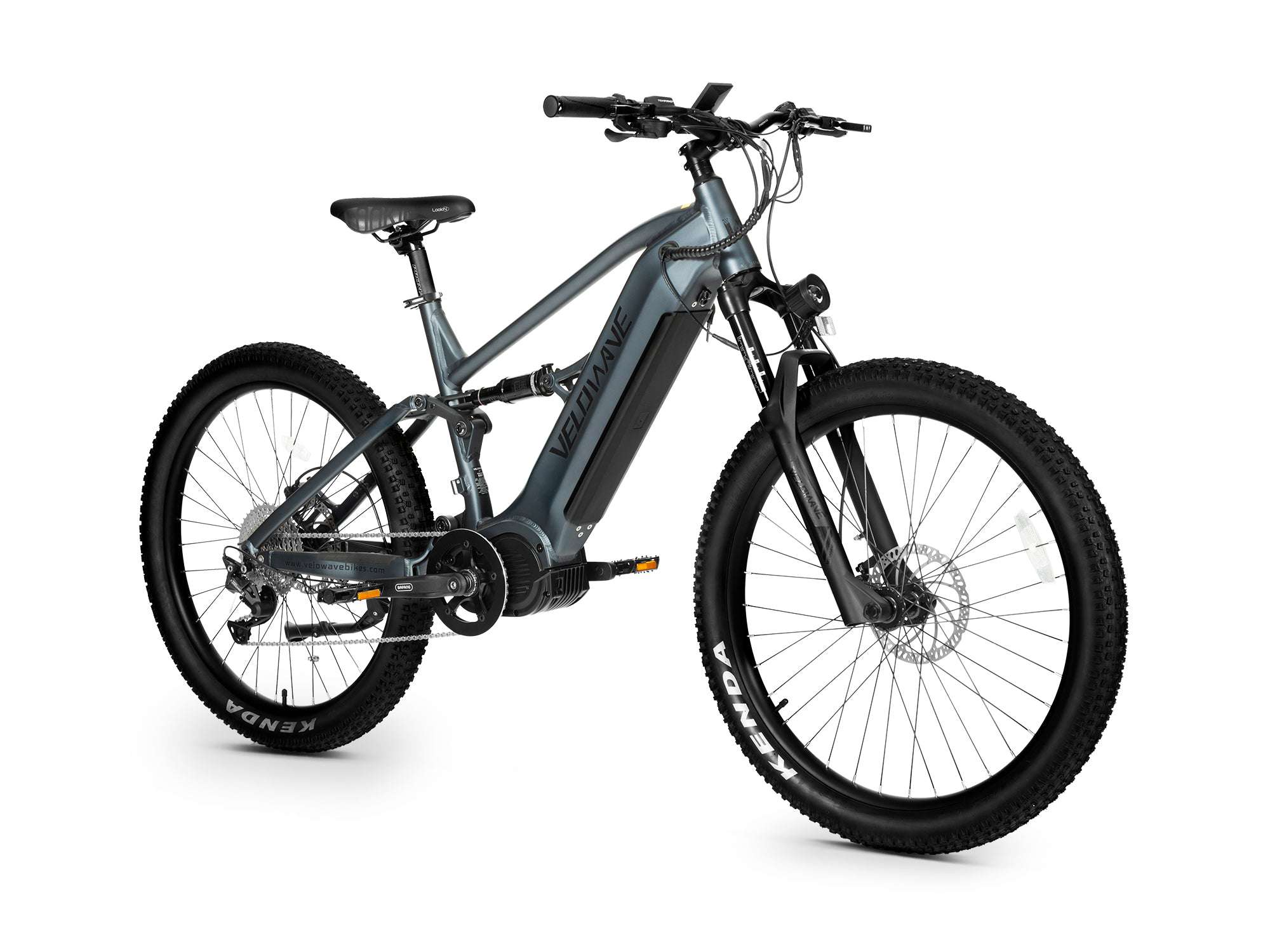

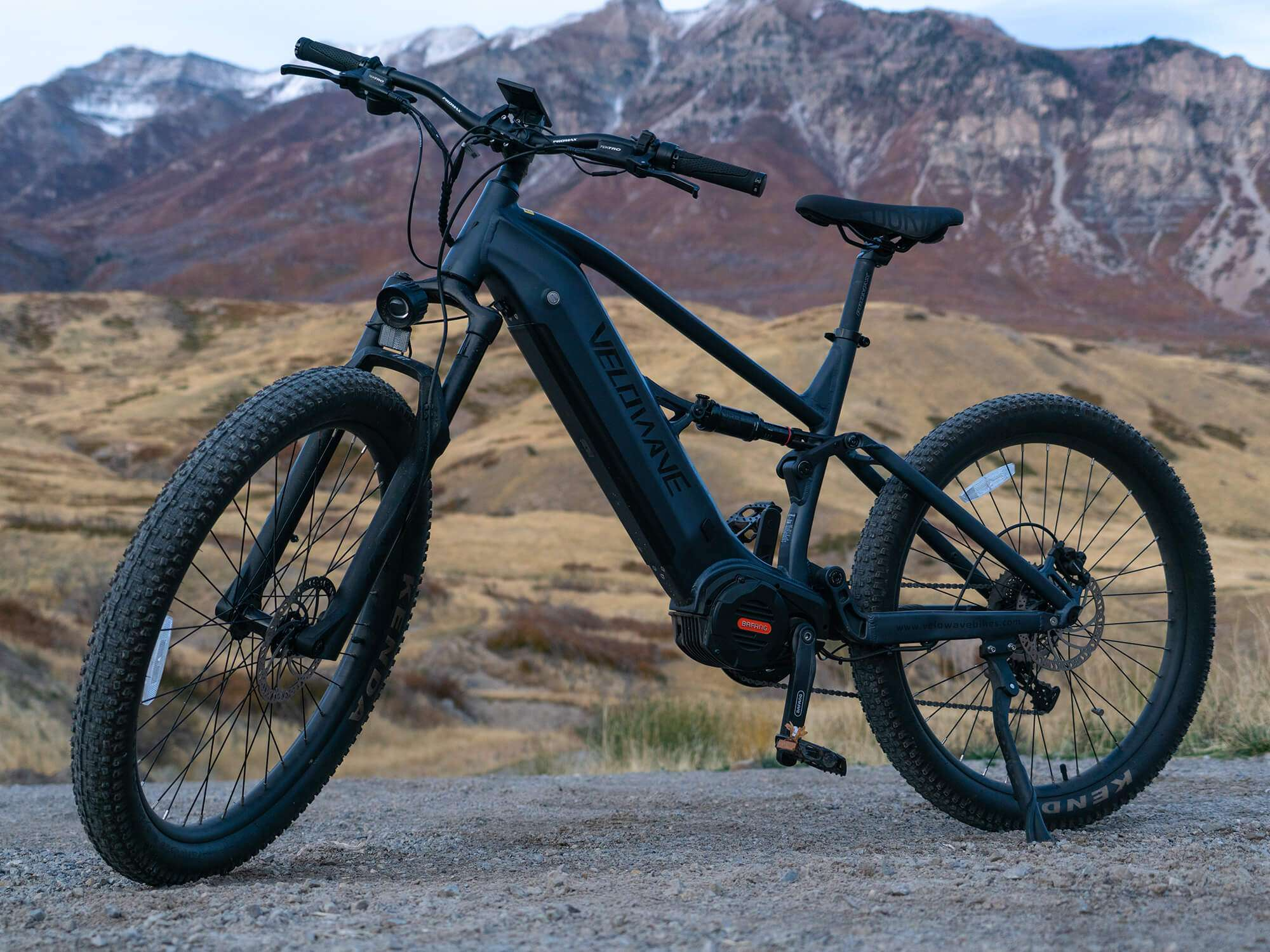

Experience the ultimate off-road adventure with the Velowave Full Suspension Electric Mountain Bike. Designed for riders who refuse to compromise on power or comfort, this e-bike blends rugged durability with sleek, modern technology. Whether you’re conquering steep forest trails or cruising through rocky paths, the Velowave is built to handle it all.
Key Features:
Powerful Mid-Drive Performance: Equipped with a high-torque mid-drive motor that provides superior climbing ability and balanced weight distribution for a more natural riding feel.
Dual Suspension System: Featuring a front suspension fork and a rear shock absorber, this bike effortlessly soaks up bumps and vibrations, ensuring a smooth ride on the roughest terrains.
Integrated High-Capacity Battery: The long-lasting battery is seamlessly hidden within the frame for a clean look and protection against the elements, offering impressive range on a single charge.
All-Terrain Kenda Tires: Professional-grade Kenda tires provide exceptional grip and stability, giving you the confidence to ride through mud, sand, or gravel.
Precision Braking & Shifting: Reliable hydraulic disc brakes for instant stopping power and a smooth gear system to tackle any incline with ease.

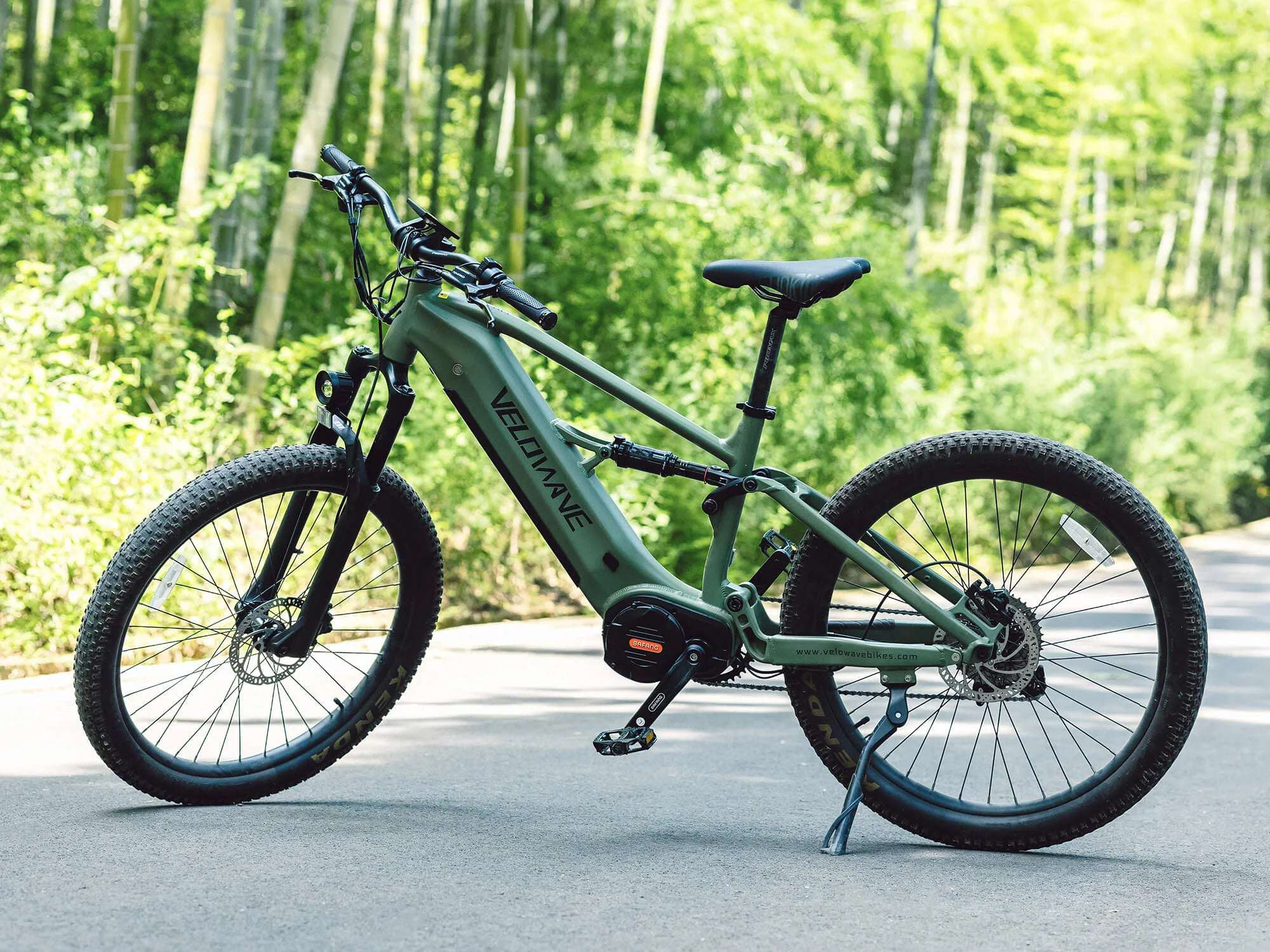

Premium Design: Finished in a stunning Matte Sage Green, the lightweight aluminum alloy frame is as stylish as it is strong.
Technical Specifications:
Motor: 750W (Peak) Mid-Drive Motor
Frame Type: Full Suspension Aluminum Alloy
Tires: 27.5″ x 2.4″ Kenda All-Terrain
Brakes: Hydraulic Disc Brakes
Extras: Integrated LED Headlight, Multi-functional LCD Display, and Heavy-duty Kickstand.
Take your trail riding to the next level. More power, more comfort, more freedom.
General
- Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
- Max Speed:Up to 28 MPH on Pedal Assist; 20 MPH on Throttle
- Range:60 Miles* on PAS, up to 70 Miles on Level 1, 40 Miles* on Throttle (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)
Frameset
- Frame:6061 Aluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 121 mm
- Fork:Air Suspension Fork with 140mm travel, with lockout
- Rear Suspension:185X45 air suspension with 42mm travel, with external rebound adjustment
Wheels
- Rim:Aluminum 27.5″ 36H Front & Rear
- Front Wheel Spokes:Black Stainless 13G x 269/270 mm, Front and Rear
- Hubs:Disc Nutted Front / Rear Axles
- Tire:Kenda 27.5″ x 2.8″
- Tire Size:27.5″ x 2.8″
E-system
- Battery:Removable Internal Lithium-ion Battery 48V 15Ah (720Wh) with LG cells
- Charger:48V 3 Amp Charger, Approx. 5 Hour Charging
- Motor:500W （Peak 760W），130Nm
- Display:TFT Smart Easy Read Display with Backlight, Colorful screen
- Pedal Assist:6 Levels
- Sensor:Torque Sensor
- Throttle:Throttle on demand – Throttle from a complete stop
- Light:Front 48V LED Light 80 LUX; Rear Blinking Light
Drivetrain
- Shifter:Shimano 10-Speed Thumb Shift
- Pedal Assist:6 Levels
- Crankset:170mm w/ 38 T
- Freewheel:Shimano 11-42T, 10-Speed CASSETTE
- Pedals:Alloy Platform
- Chain:KMC 122 Link, 10-Speed
- Rear Derailleur:Shimano Deore RD-M4120 10-Speed
Components
- Saddle:Comfortable Saddle
- Seatpost:Forged Alloy, φ31.6x300mm
- Seat Clamp:φ35mm Quick Release
- Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 60mm, RISE: 6°
- Handlebar:Aluminum 31.8mm, Width 740mm
- Headset:Sealed Bearing Headset
- Grips:Ergonomic Comfort
- Brakes:Tektro Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
- Kickstand:Included, Rear Mount
- Fenders:Not Included
- Rear Rack:Not Included
Weight
- Net Weight:64 lbs / 29.2 kg
- Gross Weight:91 lbs / 41.2 kg
- Battery Weight:8.7 lbs / 3.95 kg
- Max Load Capacity:385 lbs / 175 kg (including cargo)
Size
- Product Size:2035 x 1110 x 745 mm
- Packing Size:1700 x 300 x 830 mm
